Intel® Joule™ 550x 安裝ubuntu

作者：

前言

Intel 已經沒有維護了才拿出來玩...
物盡其用就把它當作小PC使用吧!

BIOS

joule-firmware-2017-06-02-1H3-public

[註]:千萬不要用最新的版本1J2,我當初刷下去後開機會卡在BIOS無法使用

OS

內存:
eMMC 8GB
內建Yocto作業系統
不建議刷掉此作業系統,
作業系統已經設好serial consle,
可以只接serial line直接連進機器
[註]:shutdown -r 0 //Yocto重開機指令




SDCard:


安裝ubuntu-18.04.3-server




安裝過程:


CPU是x86架構沒什麼困難


只要想辦法把OS塞進SDCard插進板子就沒問題了




我下載ubuntu-18.04.3-live-server-amd64.iso


直接使用PC將ubuntu安裝至SDCard


安裝完成順便安裝套件wireless-tools、wpa_supplicant、firmware-iwlwifi


機器插入SDCard,接上HDMI、鍵盤開機




為了方便使用serial line直接Debug,


設定serial consle,Grub及Ubuntu的sericl consle參照下方設定

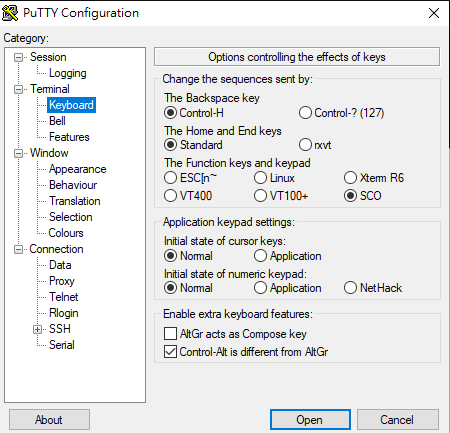

設定完成後開機過程包含BIOS都可以透過serial去做操作


[註]:baud rate 115200

















Serial Consle





GRUB





https://c4691294.coding.me/Linux/Ubuntu-18-04配置serial-console/

我這邊找到serial port是掛在ttyS6

使用dmesg | grep tty

在Yocto跟Ubuntu比對查找



/etc/default/grub


mowei@mowei:/etc/default$ vim grub
# If you change this file, run 'update-grub' afterwards to update
# /boot/grub/grub.cfg.
# For full documentation of the options in this file, see:
#   info -f grub -n 'Simple configuration'

GRUB_DEFAULT=0
#GRUB_TIMEOUT_STYLE=hidden
GRUB_TIMEOUT=5
GRUB_DISTRIBUTOR=`lsb_release -i -s 2> /dev/null || echo Debian`
#GRUB_CMDLINE_LINUX_DEFAULT="quiet splash"
GRUB_CMDLINE_LINUX_DEFAULT=""
GRUB_CMDLINE_LINUX="console=tty1 console=ttyS6,115200n8"

# Uncomment to enable BadRAM filtering, modify to suit your needs
# This works with Linux (no patch required) and with any kernel that obtains
# the memory map information from GRUB (GNU Mach, kernel of FreeBSD ...)
#GRUB_BADRAM="0x01234567,0xfefefefe,0x89abcdef,0xefefefef"

# Uncomment to disable graphical terminal (grub-pc only)
#GRUB_TERMINAL=console
GRUB_TERMINAL=serial
GRUB_SERIAL_COMMAND="serial --speed=115200 --unit=0 --word=8 --parity=no --stop=1"

# The resolution used on graphical terminal
# note that you can use only modes which your graphic card supports via VBE
# you can see them in real GRUB with the command `vbeinfo'
#GRUB_GFXMODE=640x480

# Uncomment if you don't want GRUB to pass "root=UUID=xxx" parameter to Linux
#GRUB_DISABLE_LINUX_UUID=true

# Uncomment to disable generation of recovery mode menu entries
#GRUB_DISABLE_RECOVERY="true"

# Uncomment to get a beep at grub start
#GRUB_INIT_TUNE="480 440 1"





sudo update-grub









\boot\grub\grub.cfg
#
# DO NOT EDIT THIS FILE
#
# It is automatically generated by grub-mkconfig using templates
# from /etc/grub.d and settings from /etc/default/grub
#

### BEGIN /etc/grub.d/00_header ###
if [ -s $prefix/grubenv ]; then
  set have_grubenv=true
  load_env
fi
if [ "${next_entry}" ] ; then
   set default="${next_entry}"
   set next_entry=
   save_env next_entry
   set boot_once=true
else
   set default="0"
fi

if [ x"${feature_menuentry_id}" = xy ]; then
  menuentry_id_option="--id"
else
  menuentry_id_option=""
fi

export menuentry_id_option

if [ "${prev_saved_entry}" ]; then
  set saved_entry="${prev_saved_entry}"
  save_env saved_entry
  set prev_saved_entry=
  save_env prev_saved_entry
  set boot_once=true
fi

function savedefault {
  if [ -z "${boot_once}" ]; then
    saved_entry="${chosen}"
    save_env saved_entry
  fi
}
function load_video {
  if [ x$feature_all_video_module = xy ]; then
    insmod all_video
  else
    insmod efi_gop
    insmod efi_uga
    insmod ieee1275_fb
    insmod vbe
    insmod vga
    insmod video_bochs
    insmod video_cirrus
  fi
}

if [ x$feature_default_font_path = xy ] ; then
   font=unicode
else
insmod part_msdos
insmod ext2
set root='hd3,msdos5'
if [ x$feature_platform_search_hint = xy ]; then
  search --no-floppy --fs-uuid --set=root --hint-bios=hd3,msdos5 --hint-efi=hd3,msdos5 --hint-baremetal=ahci3,msdos5  2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b
else
  search --no-floppy --fs-uuid --set=root 2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b
fi
    font="/usr/share/grub/unicode.pf2"
fi

if loadfont $font ; then
  set gfxmode=auto
  load_video
  insmod gfxterm
  set locale_dir=$prefix/locale
  set lang=en_US
  insmod gettext
fi
terminal_output gfxterm
if [ "${recordfail}" = 1 ] ; then
  set timeout=30
else
  if [ x$feature_timeout_style = xy ] ; then
    set timeout_style=menu
    set timeout=5
  # Fallback normal timeout code in case the timeout_style feature is
  # unavailable.
  else
    set timeout=5
  fi
fi
play 480 440 1
### END /etc/grub.d/00_header ###

### BEGIN /etc/grub.d/05_debian_theme ###
set menu_color_normal=cyan/blue
set menu_color_highlight=white/blue
### END /etc/grub.d/05_debian_theme ###

### BEGIN /etc/grub.d/10_linux ###
function gfxmode {
	set gfxpayload="${1}"
}
set linux_gfx_mode=
export linux_gfx_mode
menuentry 'Debian GNU/Linux' --class debian --class gnu-linux --class gnu --class os $menuentry_id_option 'gnulinux-simple-2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b' {
	load_video
	insmod gzio
	if [ x$grub_platform = xxen ]; then insmod xzio; insmod lzopio; fi
	insmod part_msdos
	insmod ext2
	set root='hd3,msdos5'
	if [ x$feature_platform_search_hint = xy ]; then
	  search --no-floppy --fs-uuid --set=root --hint-bios=hd3,msdos5 --hint-efi=hd3,msdos5 --hint-baremetal=ahci3,msdos5  2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b
	else
	  search --no-floppy --fs-uuid --set=root 2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b
	fi
	echo	'Loading Linux 4.19.0-14-amd64 ...'
	linux	/boot/vmlinuz-4.19.0-14-amd64 root=UUID=2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b ro  quiet
	echo	'Loading initial ramdisk ...'
	initrd	/boot/initrd.img-4.19.0-14-amd64
}
submenu 'Advanced options for Debian GNU/Linux' $menuentry_id_option 'gnulinux-advanced-2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b' {
	menuentry 'Debian GNU/Linux, with Linux 4.19.0-14-amd64' --class debian --class gnu-linux --class gnu --class os $menuentry_id_option 'gnulinux-4.19.0-14-amd64-advanced-2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b' {
		load_video
		insmod gzio
		if [ x$grub_platform = xxen ]; then insmod xzio; insmod lzopio; fi
		insmod part_msdos
		insmod ext2
		set root='hd3,msdos5'
		if [ x$feature_platform_search_hint = xy ]; then
		  search --no-floppy --fs-uuid --set=root --hint-bios=hd3,msdos5 --hint-efi=hd3,msdos5 --hint-baremetal=ahci3,msdos5  2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b
		else
		  search --no-floppy --fs-uuid --set=root 2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b
		fi
		echo	'Loading Linux 4.19.0-14-amd64 ...'
		linux	/boot/vmlinuz-4.19.0-14-amd64 root=UUID=2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b ro  quiet
		echo	'Loading initial ramdisk ...'
		initrd	/boot/initrd.img-4.19.0-14-amd64
	}
	menuentry 'Debian GNU/Linux, with Linux 4.19.0-14-amd64 (recovery mode)' --class debian --class gnu-linux --class gnu --class os $menuentry_id_option 'gnulinux-4.19.0-14-amd64-recovery-2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b' {
		load_video
		insmod gzio
		if [ x$grub_platform = xxen ]; then insmod xzio; insmod lzopio; fi
		insmod part_msdos
		insmod ext2
		set root='hd3,msdos5'
		if [ x$feature_platform_search_hint = xy ]; then
		  search --no-floppy --fs-uuid --set=root --hint-bios=hd3,msdos5 --hint-efi=hd3,msdos5 --hint-baremetal=ahci3,msdos5  2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b
		else
		  search --no-floppy --fs-uuid --set=root 2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b
		fi
		echo	'Loading Linux 4.19.0-14-amd64 ...'
		linux	/boot/vmlinuz-4.19.0-14-amd64 root=UUID=2efeb6e4-c104-4fcb-a3f1-1b3c74a8867b ro single
		echo	'Loading initial ramdisk ...'
		initrd	/boot/initrd.img-4.19.0-14-amd64
	}
}

### END /etc/grub.d/10_linux ###

### BEGIN /etc/grub.d/20_linux_xen ###

### END /etc/grub.d/20_linux_xen ###

### BEGIN /etc/grub.d/30_os-prober ###
### END /etc/grub.d/30_os-prober ###

### BEGIN /etc/grub.d/30_uefi-firmware ###
menuentry 'System setup' $menuentry_id_option 'uefi-firmware' {
	fwsetup
}
### END /etc/grub.d/30_uefi-firmware ###

### BEGIN /etc/grub.d/40_custom ###
# This file provides an easy way to add custom menu entries.  Simply type the
# menu entries you want to add after this comment.  Be careful not to change
# the 'exec tail' line above.
### END /etc/grub.d/40_custom ###

### BEGIN /etc/grub.d/41_custom ###
if [ -f  ${config_directory}/custom.cfg ]; then
  source ${config_directory}/custom.cfg
elif [ -z "${config_directory}" -a -f  $prefix/custom.cfg ]; then
  source $prefix/custom.cfg;
fi
### END /etc/grub.d/41_custom ###







Systemd



下面似乎無效改用getty@.service





vim /etc/init.d/ttyS6.conf


# ttyS6 - getty
#
# This service maintains a getty on ttyS0 from the point the system is
# started until it is shut down again.

start on stopped rc RUNLEVEL=[2345]
stop on runlevel [!2345]

respawn
exec /sbin/getty -L 115200 ttyS6 vt100




getty@.service



https://www.rogerirwin.co.nz/open-source/enabling-a-serial-port-console/


sudo nano /lib/systemd/system/serial-getty@.service
First we need to edit the serial-getty service to set the correct bard rate.

# Edit this line
ExecStart=-/sbin/agetty --keep-baud 115200,38400,9600 %I $TERM

# To This
ExecStart=-/sbin/agetty 115200 %I $TERM
Set this to the bard rate that you wish to use. This should be the same at the computer is using at the other end.

systemctl daemon-reload

# For a USB serial adaptor
systemctl enable serial-getty@ttyUSB0.service

# For a built in serial port /dev/ttyS6
systemctl enable serial-getty@ttyS6.service




NetWork


抓取iwlwifi-8000C 至/lib/firmware
modprobe -r iwlwifi; modprobe iwlwifi

安裝wpa_supplicant


sudo ifconfig wlp1s0 up
sudo iwlist wlp1s0 scan
sudo wpa_passphrase EssidName Pass  | sudo cat >> /etc/wpa_supplicant/wpa_supplicant.conf
sudo wpa_supplicant -c /etc/wpa_supplicant/wpa_supplicant.conf  -i wls1p0
sudo dhclient wlp1s0


Network設定



# ifupdown has been replaced by netplan(5) on this system.  See
# /etc/netplan for current configuration.
# To re-enable ifupdown on this system, you can run:
#    sudo apt install ifupdown

allow-hotplug wlp1s0
    iface wlp1s0 inet dhcp
    wireless-essid EssidName
    wpa-conf /etc/wpa_supplicant/wpa_supplicant.conf
Bluetooth 設定

https://chenhh.gitbooks.io/ubuntu-linux/content/bluetooth.html

wget http://ftp.tw.debian.org/debian/pool/non-free/f/firmware-nonfree/firmware-iwlwifi_20190114-2_all.deb
dpkg -i firmware-iwlwifi_20190114-2_all.deb

sudo apt-get install bluez* bluetooth rfkill

hciconfig -a
sudo hciconfig info
sudo hciconfig hci0 up
sudo hcitool scan
